Unique: AHD / CVBS compatible + adjustable Guidelines!

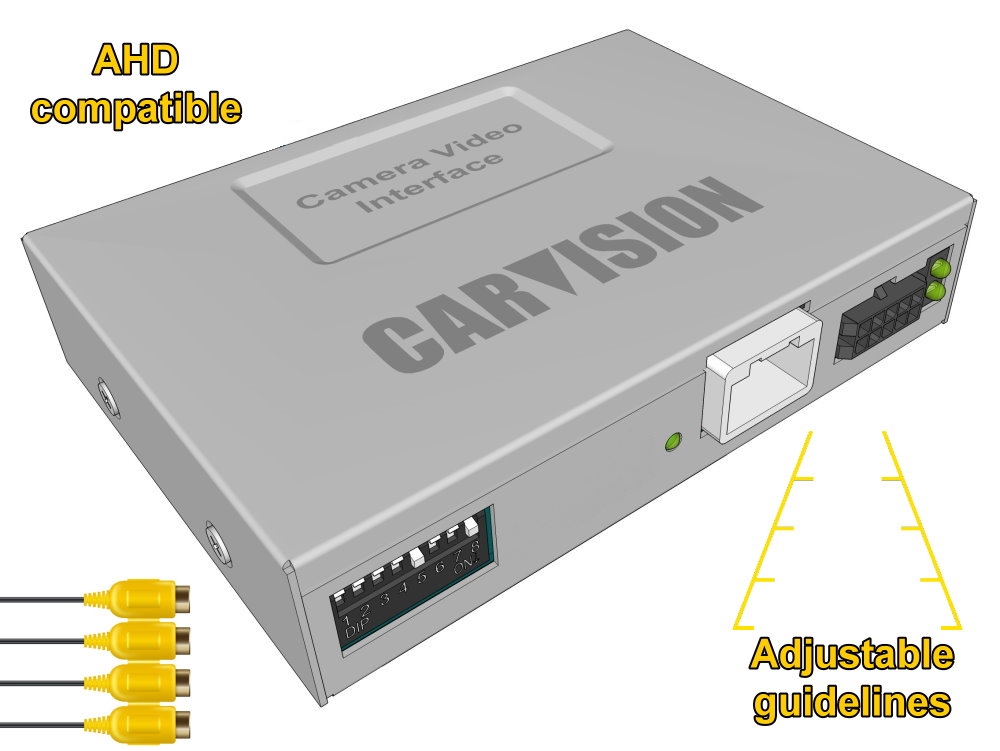

The OpenR link (SEPARATE) Camera Video interface has 4 camera/video inputs and 4 trigger wires (rear, front, right , left).

The video channels can be activated automatically by trigger wires and/or manually by using the included external switch.

The interface will automatically switch to the rearview camera when you put the gear into reverse. And if Front is active, then after reverse it will show the picture of Front camera automatically for 5, 10, 15, 20 sec. (adjustable in menu settings).

This interface supports CVBS and AHD cameras.
Compatible with: PAL/NTSC/720P/960/1080P.

Note: only suitable for systems with a separate radio/navi unit and monitor. Not suitable for all-in-one systems.

* CANbus control cannot always be guaranteed.


THIS INTERFACE IS COMPATIBLE WITH:

- OpenR link 10.x" systems with OEM Google Maps from factory (separate radio/navi unit and monitor)

- New Renault Captur MY2024 with 10.4" display system
- Renault 5 MY2024 with 10.1" display system
- Renault Master MY2024 with Google Maps from factory
- Nissan Interstar(-e) MY2025 with Google Maps from factory
